P3 RGB Pixel Panel HD Display 64×32 dot Matrix P3 SMD RGB Led Module
Product Description:

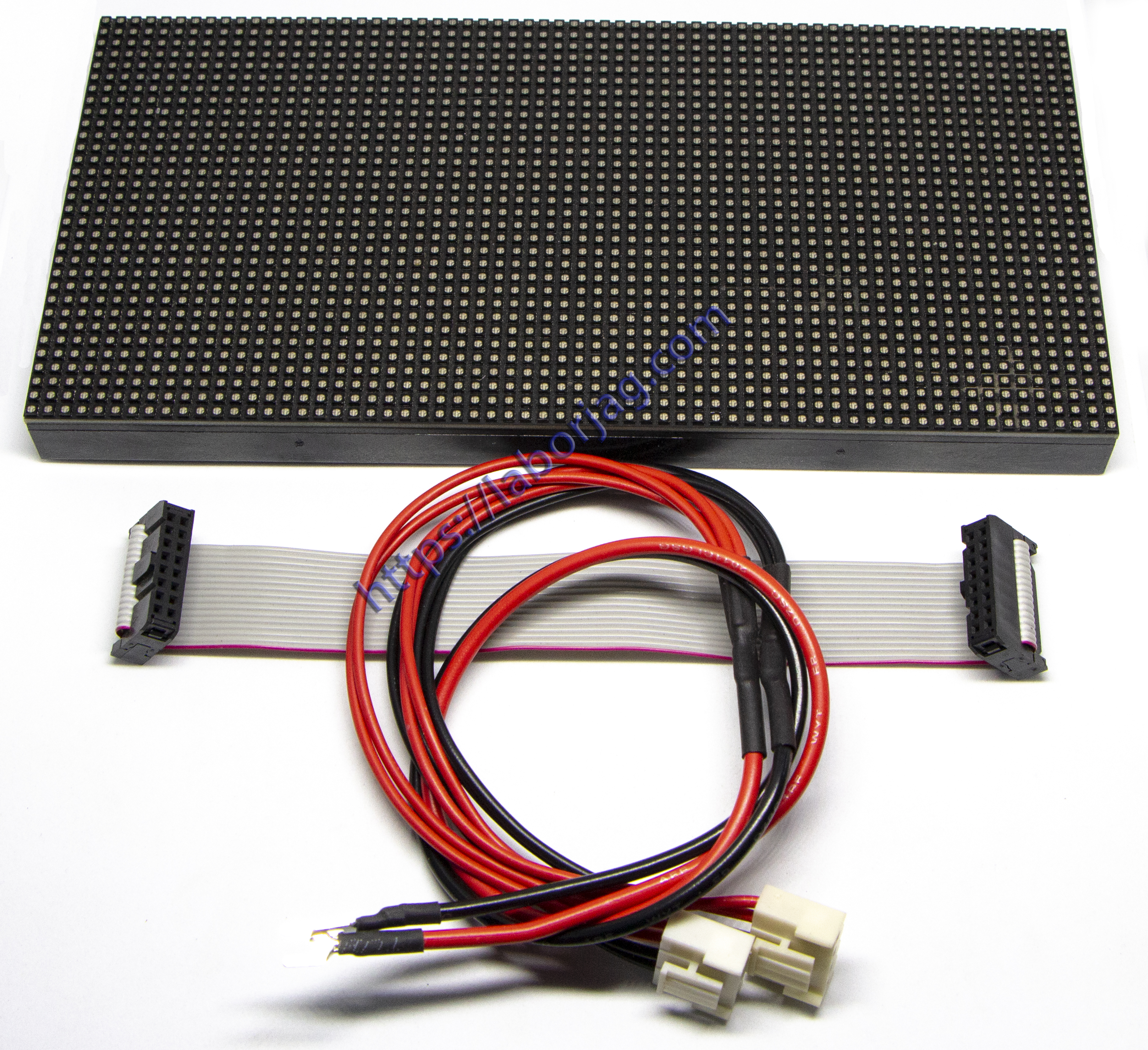

This is a 64×32 RGB LED Matrix Panel, it has 2048 full-color RGB LEDs in all. Each LED can be independently addressed and controlled. It requires at least 13 digital GPIOs to control the LED matrix. So the UNO board won’t be a good choice in this application, recommended Mega 2560, Raspberry Pi and the other kinds of microcontroller with large RAM and high speed.

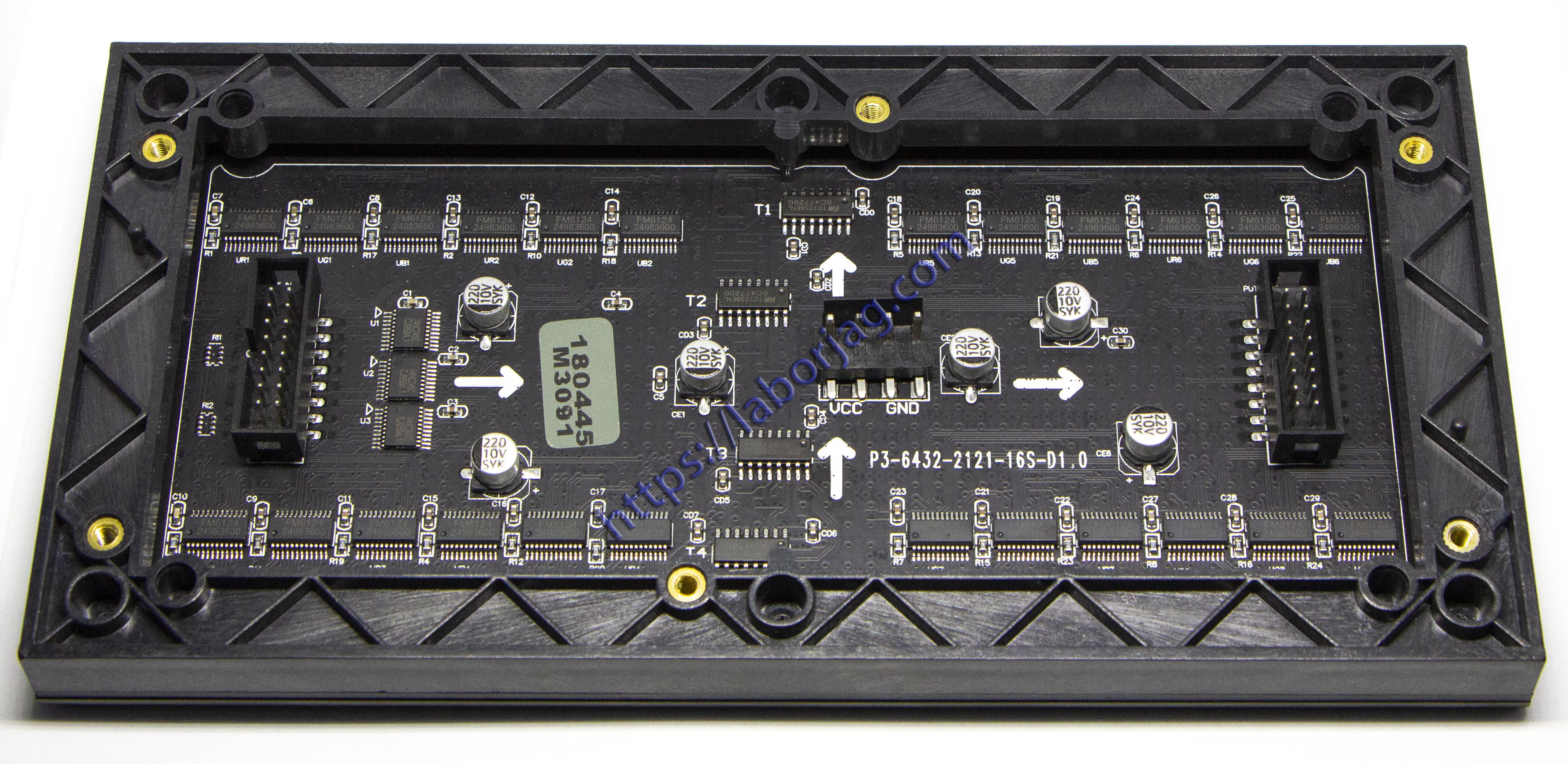

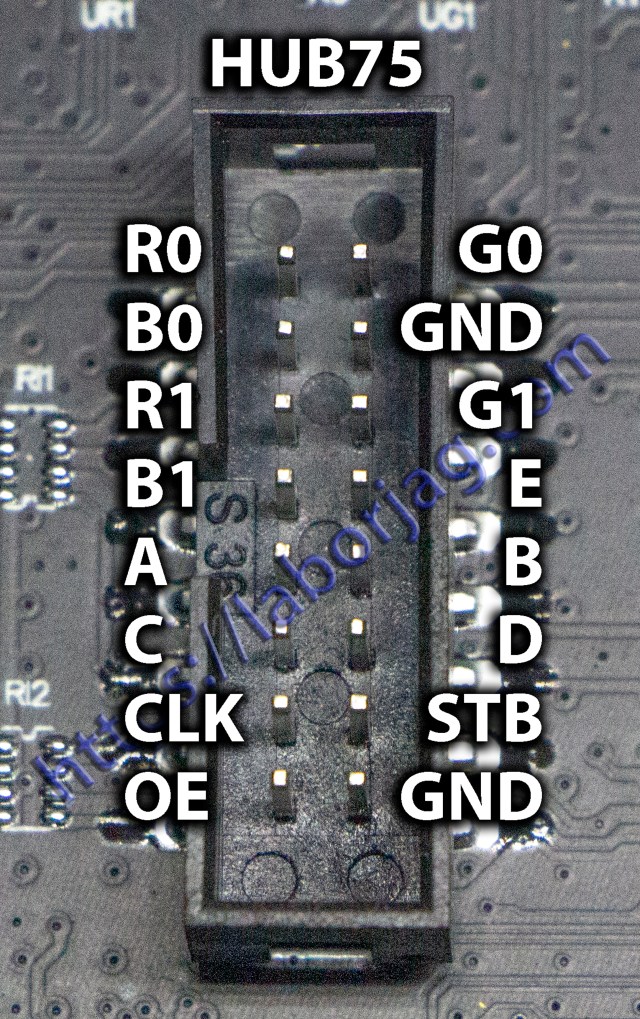

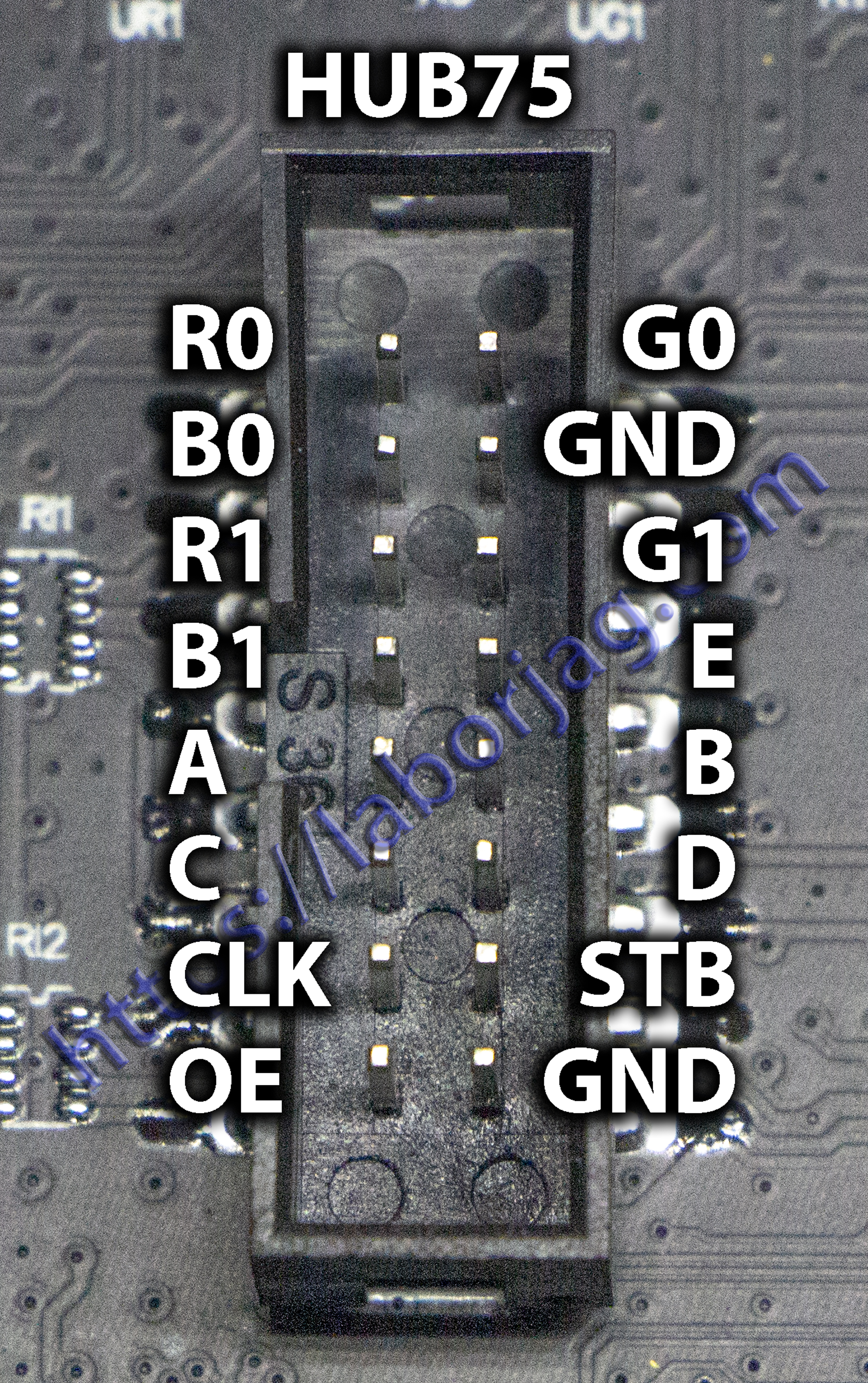

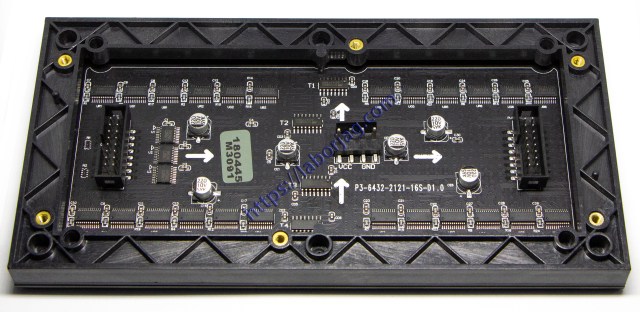

The led matrix has 2 IDC connectors (DATA_IN, DATA_OUT) on the back, you can cascade multiple panels and make a huge screen together. BUT Arduino doesn’t support this function, its speed is not enough to multiple panel.
Whats more, It is a high brightness, long life, no pollution, pure color LED display module. It can be used both indoor and outdoor, safety and stability, the module can not be mutually extrusion deformation, also can be used normally in harsh environment .
Specification:
Pixel Pitch | 3mm |
Pixel Density | 111111dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD2121 |
Module Size | 192mm x 96mm |
Module Resolution | 64dots x 32dots |
Drive Mode | 1/16 Scan |
Standard Cabinet Size | 576mm x 576mm |
Cabinet Weight | 8KG |
Working voltage | 5V |
Brightness | ≥1200 cd/sqm |
Viewing Distance | 3m-30m |
Viewing Angle | H: 140°; V:140° |
Refresh Rate | 2000HZ, adjustable by software |
Frame Rate | 120frame/s |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10%, 50HZ |
Max Power Consumption | 1000W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30~+70 degree |
Working Temperature | -20~+50 degree |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP20 |
Operating Humidity | 10%~90% RH |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8, Win10 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Download Library
We also need to install the Adafruit GFX library
Required Materials:
5V power supply 2A recommended
