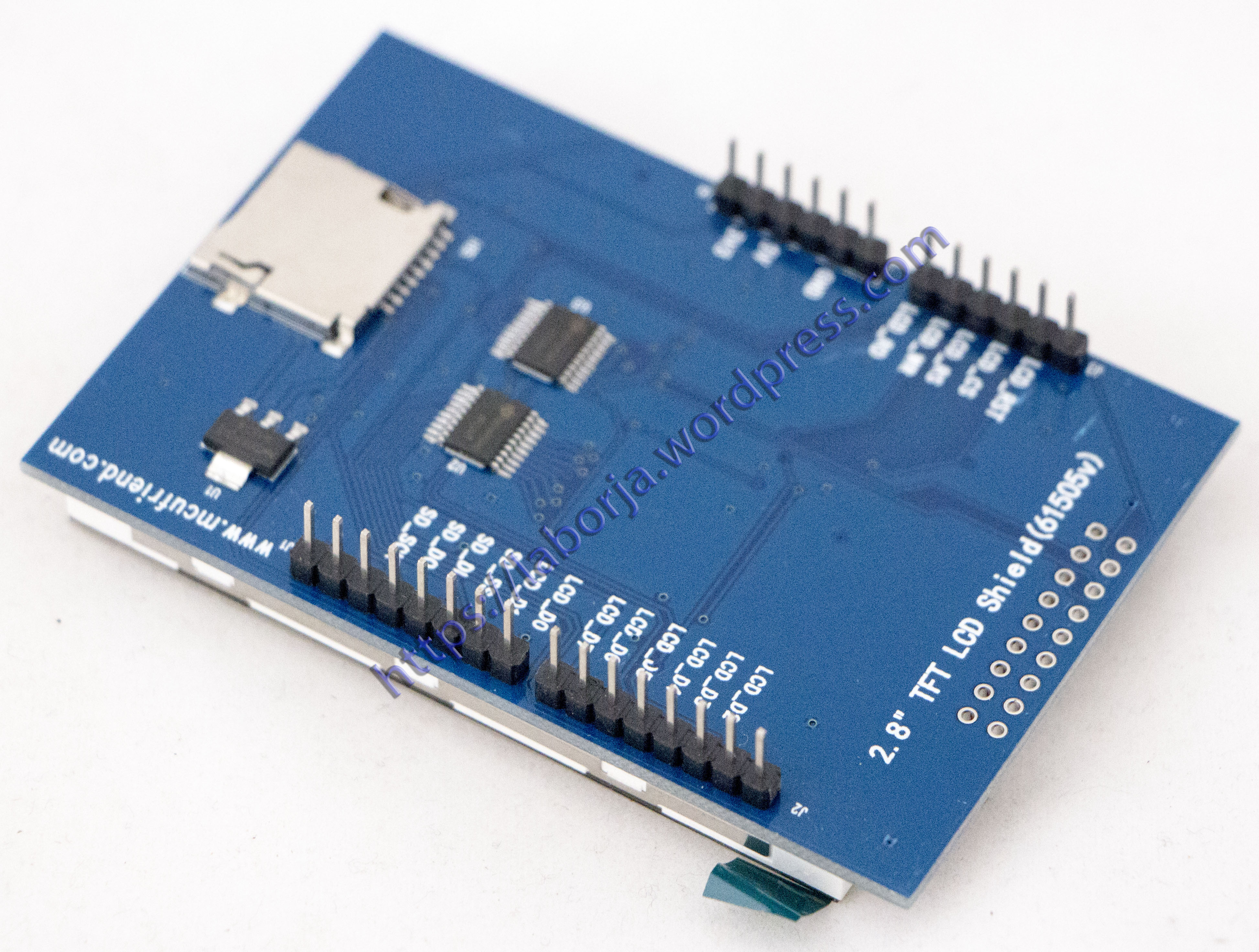

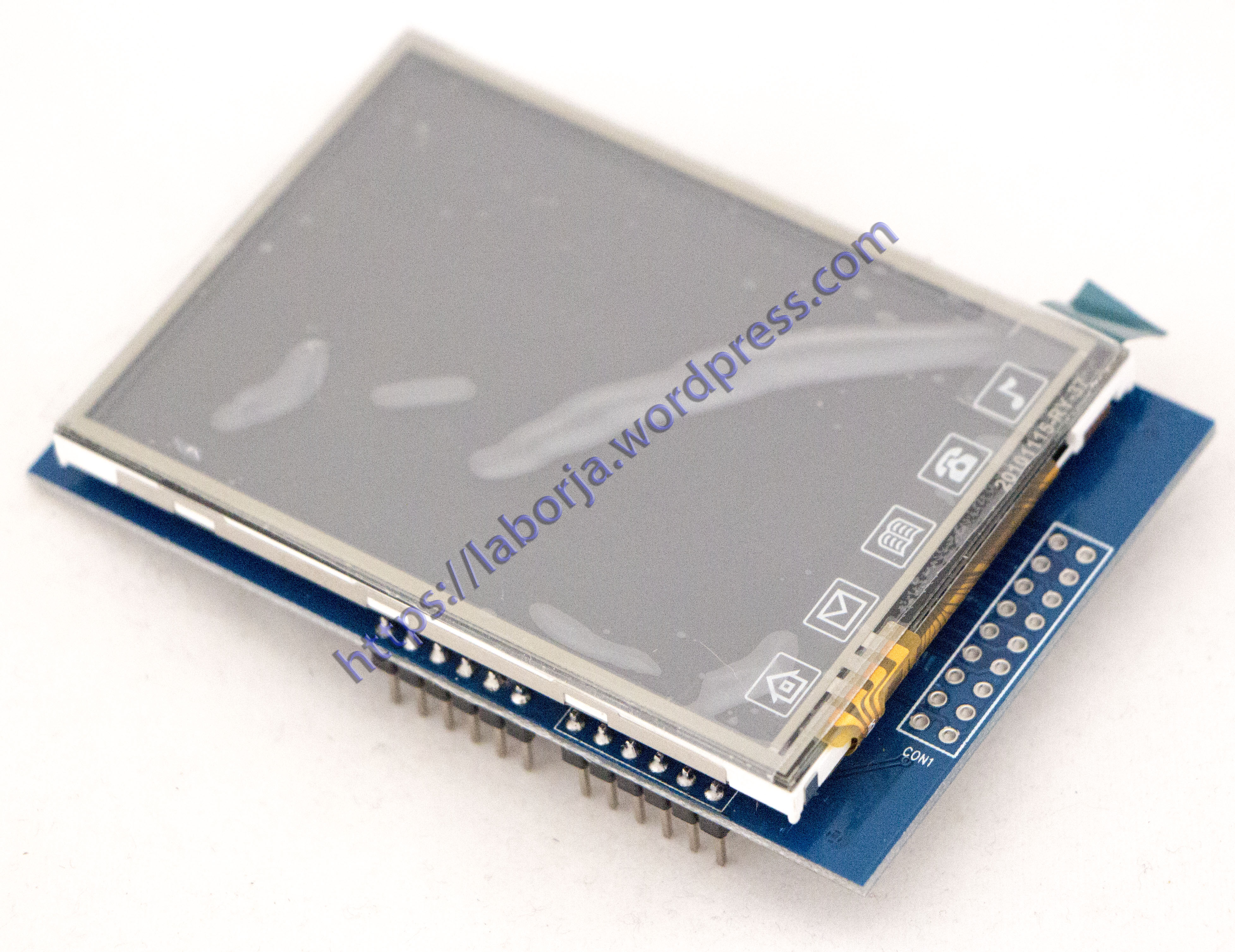

2.8 Inch TFT LCD Display Touch Screen Module With SD Slot

TFT LCD Display a TFT LCD Display b

2.8 Inch TFT LCD Display Touch Screen Module With SD Slot

Product Description:
1. 2.4 diagonal LCD TFT display
2. Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control
3. Colorful, 18-bit 262,000 different shades
4. 4-wire resistive touchscreen
5. 240×320 resolution
6. spfd5408 controller with built in video RAM buffer
7. 8 bit digital interface, plus 4 control lines
8. Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD
9. 5V compatible, use with 3.3V or 5V logic
10. Onboard 3.3V @ 300mA LDO regulator

Specifications:
Size: 80*50*7mm
Weight: about 39.3g

Package included:
1 Touch Screen Module
