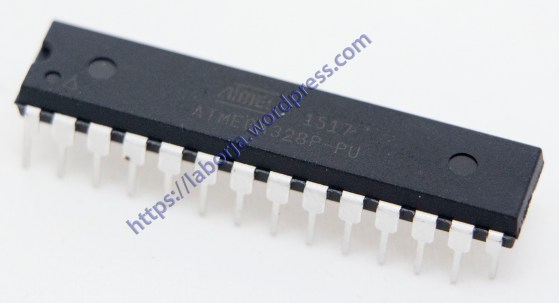

ATMEGA328P-PU CHIP ATMEGA328 Microcontroller MCU AVR 32K 20MHz FLASH DIP-28
The high-performance Atmel picoPower 8-bit AVR RISC-based microcontroller combines 32KB ISP flash memory with read-while-write capabilities, 1024B EEPROM, 2KB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, a 6-channel 10-bit A/D converter (8-channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The device operates between 1.8-5.5 volts.
By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
Flash (Kbytes): 32 Kbytes
Pin Count: 32
Max. Operating Freq. (MHz): 20 MHz
CPU: 8-bit AVR
No. of Touch Channels: 16
Hardware QTouch Acquisition: No
Max I/O Pins: 23
Ext Interrupts: 24
USB Speed: No
USB Interface: No
