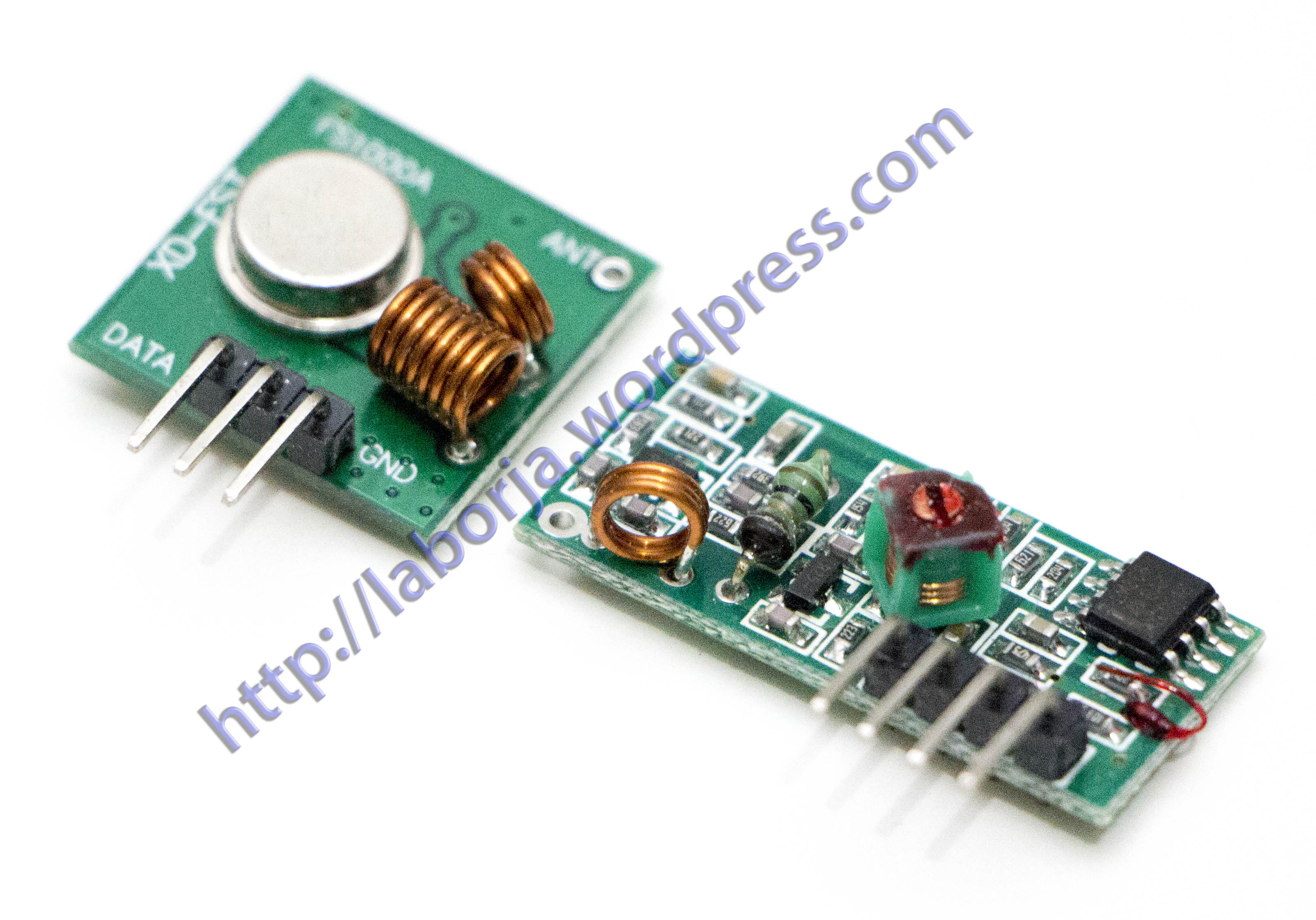

RF Wireless Receiver Module and Transmitter Module Board

RF WirelessRF Wireless Receiver Module & Transmitter Module Board Ordinary super- regeneration 315/433MHZ DC5V (ASK /OOK)

Product Description:

TX Technical Specifications:
1 Working voltage: 3V12V
2 Working current: max≤40mA (12V), min≤9mA(3V)
3 Resonance mode: sound wave resonance (SAW)
4 Modulation mode: ASK /OOK
5 Working frequency: 315MHz-433.92MHz, customized frequency is available.
6 Transmission power: 25mW (315MHz at 12V)
7 Frequency error: +150kHz (max)
8 Velocity: ≤10Kbps
9 Self-owned codes: negative

RX Technical Specifications:
1 Working voltage: 5.0VDC +0.5V
2 Working current:≤5.5mA (5.0VDC)
3 Working principle: single chip superregeneration receiving
4 Working method: OOK/ASK
5 Working frequency: 315MHz-433.92MHz, customized frequency is available.
6 Bandwidth: 2MHz (315MHz, having result from testing at lowing the sensitivity 3dBm)
7 Sensitivity: excel –100dBm (50ω)
8 Transmitting velocity: Package Included:

Packaging Details:
1 RF transmitter
1 RF receiver
