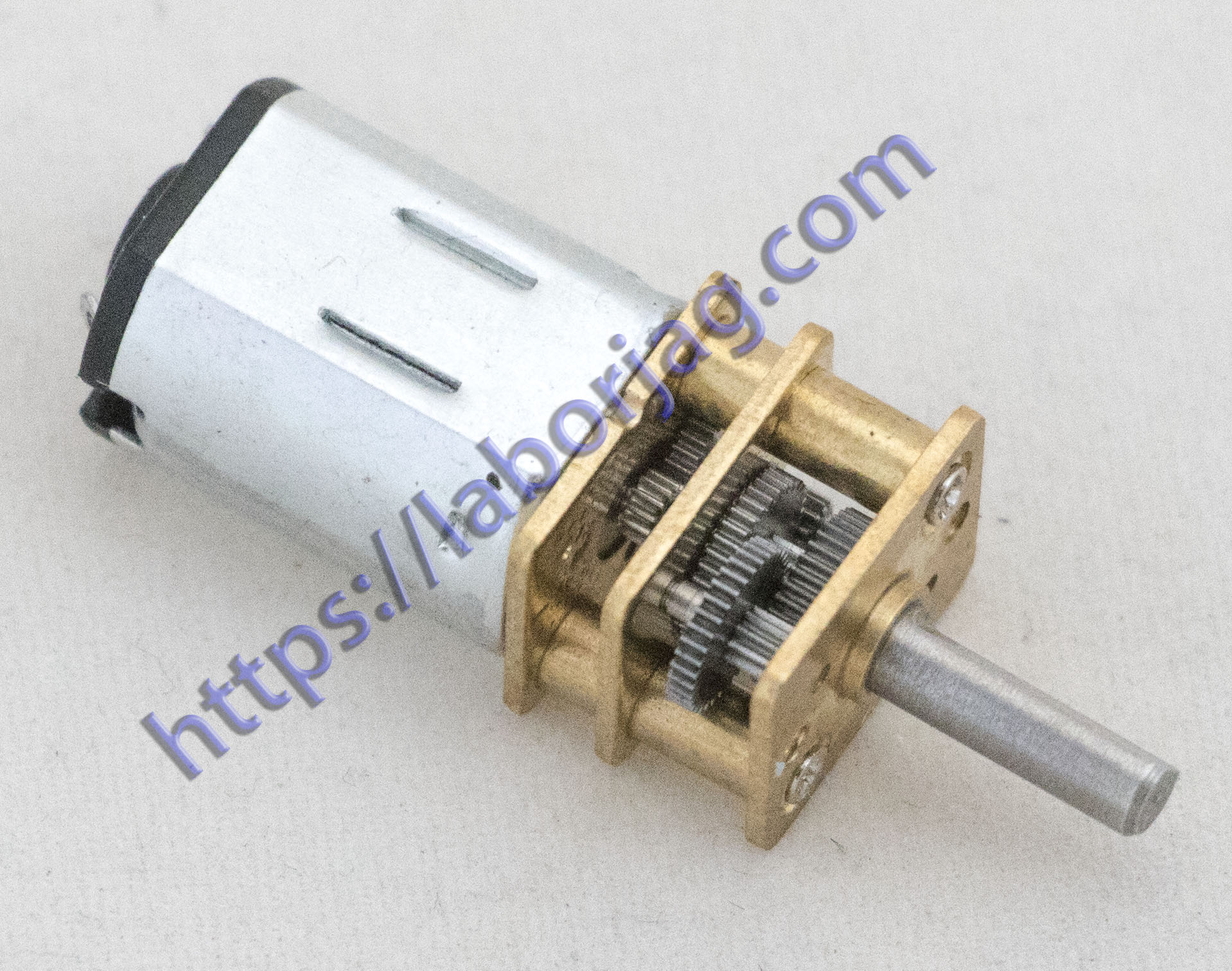

N20 DC12V 100RPM Gear Motor

N20 DC12V 100RPM Gear Motor High Torque Mini Electric Gear Box Motor High Quality 3mm Shaft Diameter

Product Description:

Features:
DC Mini Metal Gear Motor, ideal for making robots
Light weight, high torque and low RPM
Fine craftsmanship, durable, not easy to wear
With excellent stall characteristics, can climb hills easily
You can also easily mount a wheel on the motor’s output shaft

Specification:
Name: DC Mini Metal Gear Motor
Rated Voltage: DC 12V
Speed: 100RPM
Shaft Diameter: 3mm
Diameter: 12 mm
Fuselage without shaft length: 26 mm
Output axial length: 10 MM to 4.4 MM
Voltage range: 6-12V

Other details:

Model Parameter
12GAN20 Voltage Non-loaded Rated load Stall
Voltage range   (V) Rated  voltage Speed  (RPM) Current (A) Speed  (RPM) Current (A) Torque (KG.CM) Torque (KG.CM) Current (A)
6-12 12 100 0.04 80 0.07 2.00 16.00 1.0

Package included:
1 Mini Gear Motor
