FPV 700TVL CMOS 1/3″ 2.1mm 140 Degree Lens Camera

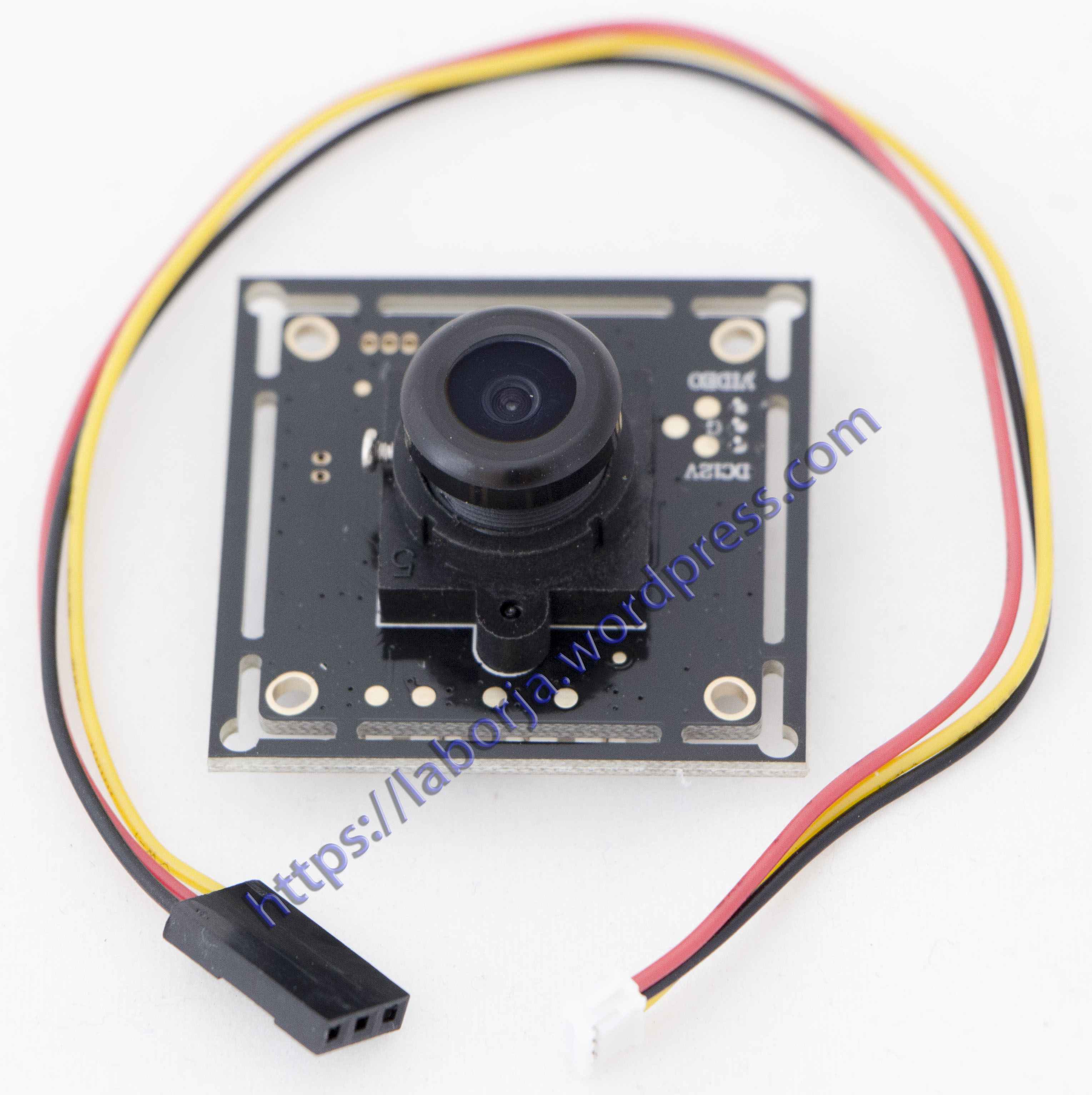

FPV Camera a

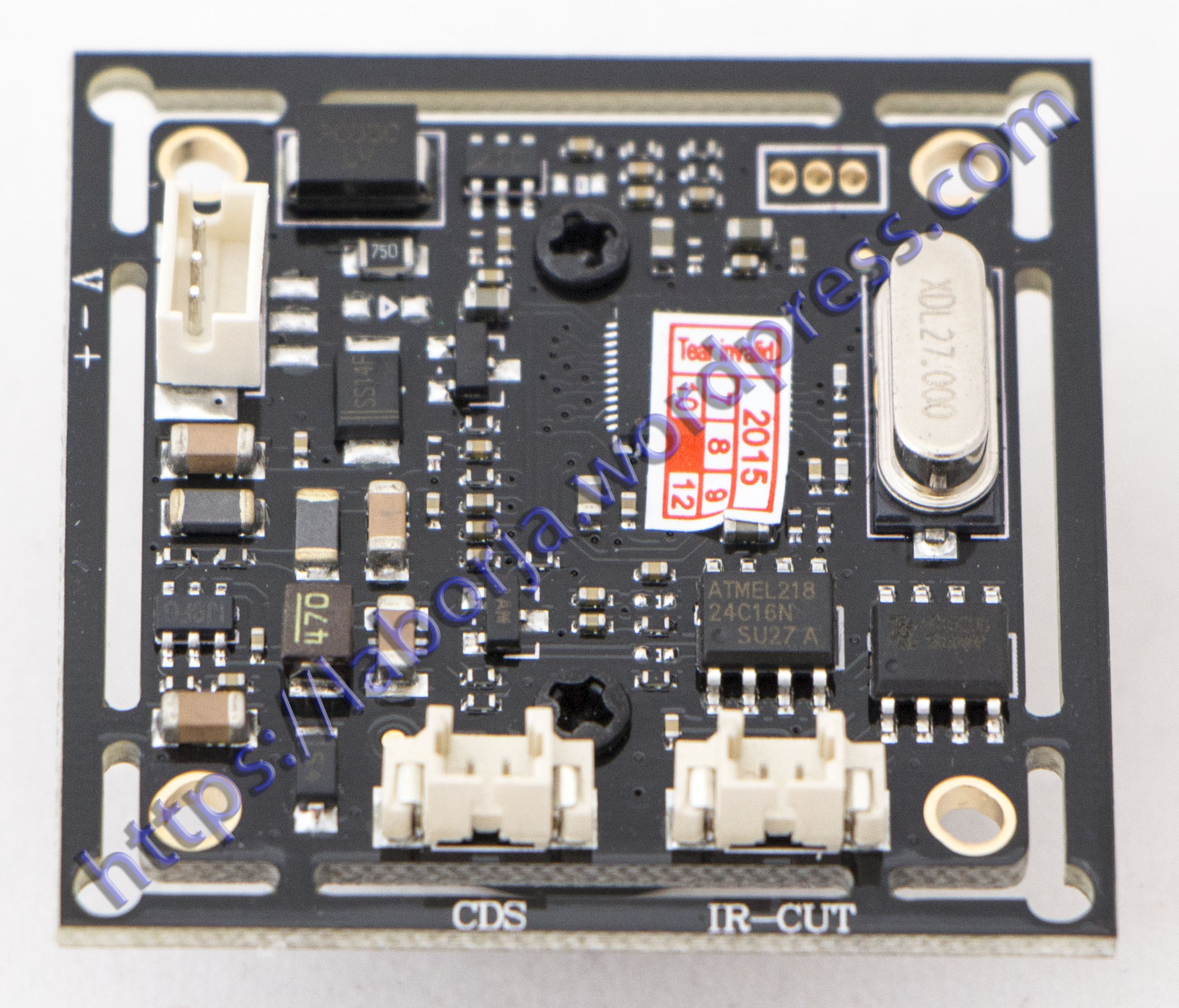

FPV Camera bFPV 700TVL CMOS 1/3″ 2.1mm 140 Degree Lens CCTV Security Board FPV Camera Only 10g For FPV QAV250 Quadcopter

Product Description:
Image Device: 1/3 Inch COMS Sensor
System: 2.1mm
Resolution: 700TVL
Min. Illumination: 0.03 Lux / F1.0
S/N Ratio: More than 52dB
Electronic Shutter: 1/50(60) to 1/100,000
White Balance: Auto
Digital Wide Dynamic Range (D-WDR): ON / OFF
Digital Noise Reduction (2D NR): ON / OFF
Auto Gain Control (AGC): Auto
DAY/NIGHT Mode: Auto/ Color/ Black and White/ External Trigger
Back Light Comp (BLC): ON / OFF
Private Mask: ON / OFF (8 replaceable zone)
Sync. System: Internal synchronization
Video Output: 1Vp-p / 75Ω
Power Requirements: DC 12V
Power Consumption: 80 mA
Operating Temp.: -10 C to +50 C ( 14 F to 122 F )
Operating Humidity: 20 to 80 %
Storage Temp.: 40 C to +60 C ( -40 F to 140 F )
Storage Humidity: 20 to 95 %
Dimension: 38mm x 38mm
Weight: 10g

Package include:
1 Camera board with lens
1 Video cable
