Waveshare 1.44inch LCD Display HAT for Raspberry Pi 128×128 Pixels with Embedded Controller Communicating Via SPI Interface
Product Description:

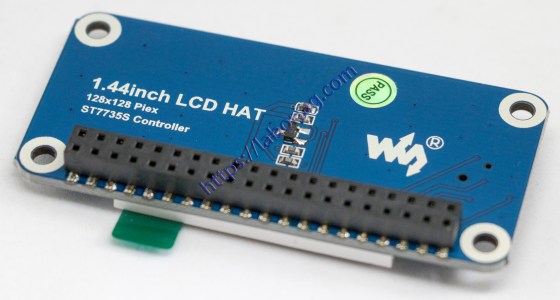

This is an LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128×128 pixels, with embedded controller, communicating via SPI interface.
Trying to add a control interface for your Pi. This compact display would be the ideal choice.
Features:
Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W

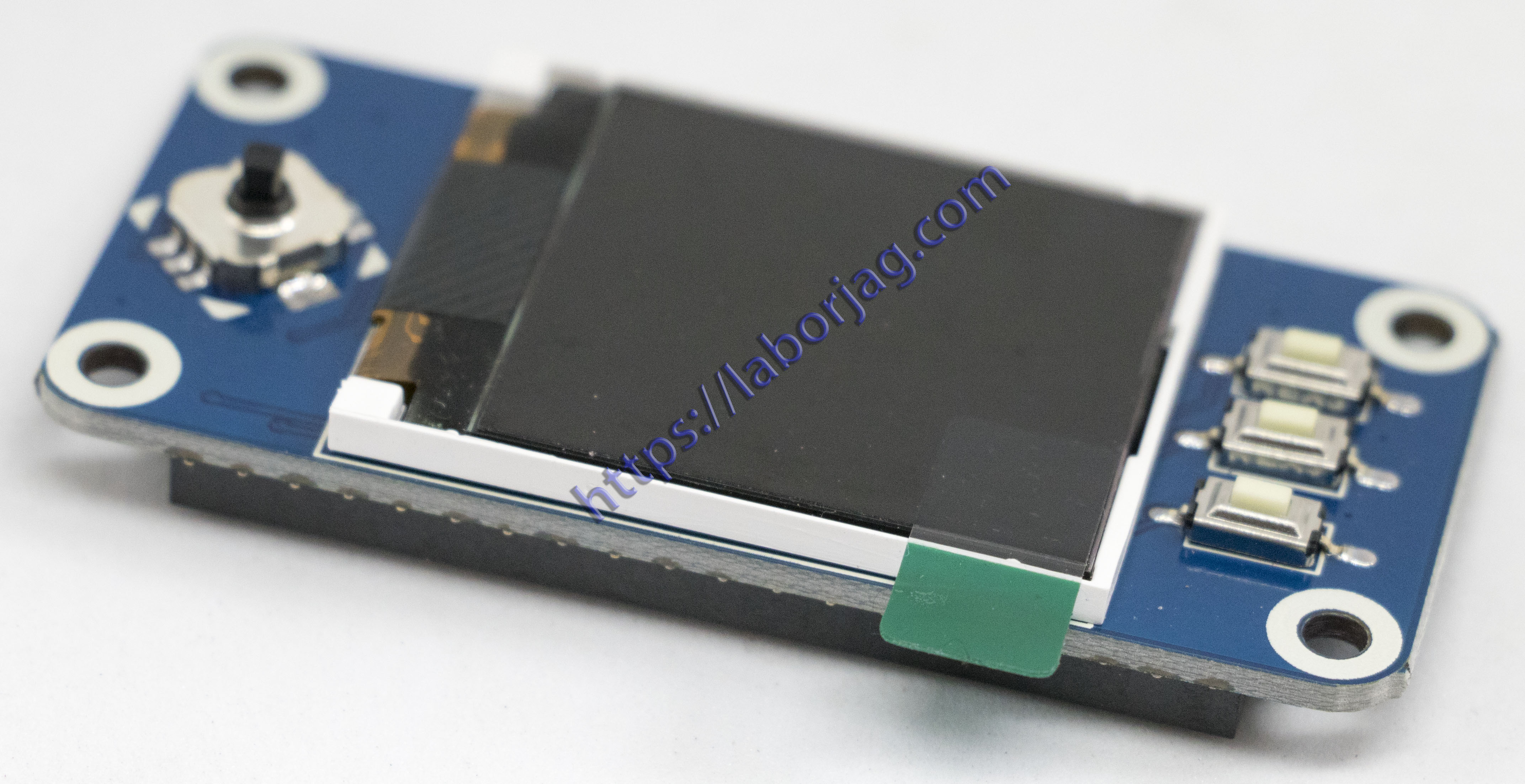

1x joystick (5-position), 3x pushbuttons, handy and useful
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications:
Driver: ST7735S
Interface: SPI
Display color: RGB, 65K color
Resolution: 128×128
Backlight: LED
Operating voltage: 3.3V
Interface:
| SYMBOL | Raspberry Pi PIN (BCM) | DESCRIPTION |
|---|---|---|
| KEY1 | P21 | Button 1/GPIO |
| KEY2 | P20 | Button 2/GPIO |
| KEY3 | P16 | Button 3/GPIO |
| Joystick Up | P6 | Joystick Up |
| Joystick Down | P19 | Joystick Down |
| Joystick Left | P5 | Joystick Left |
| Joystick Right | P26 | Joystick Right |
| Joystick Press | P13 | Joystick Press |
| SCLK | P11/SCLK | SPI clock input |
| MOSI | P10/MOSI | SPI data input |
| DC | P25 | Data/Command selection (high for data, low for command) |
| CS | P8/CE0 | Chip selection, low active |
| RST | P27 | Reset, low active |
| BL | P24 | Backlight |
More info:
Wiki
Package Content
1 1.44inch LCD HAT
1 RPi screws pack (2pcs)
